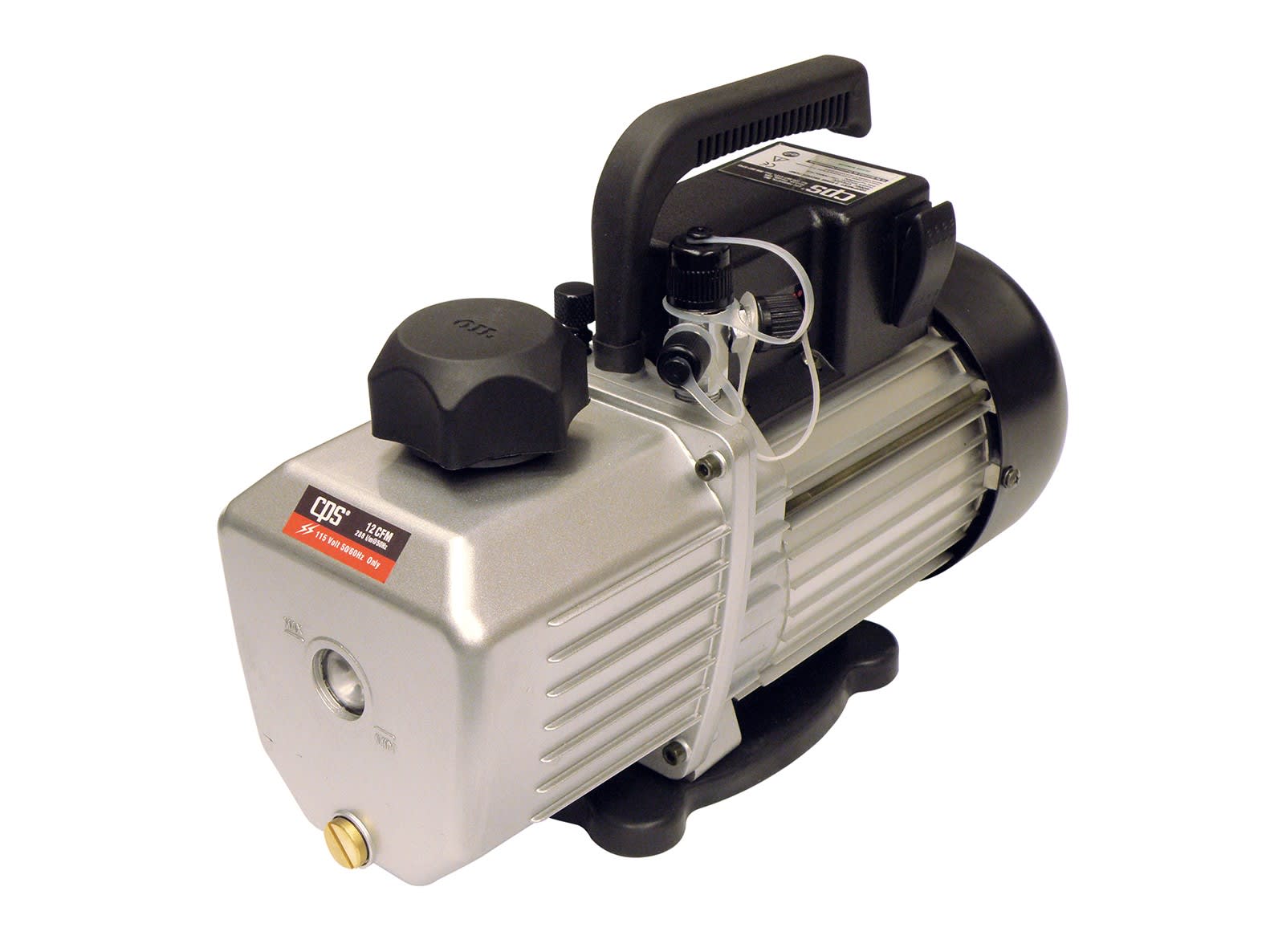

VPS6DU | Pro-Set® 6 CFM Sparkless Ignition Proof Vacuum Pump
An efficient, lightweight and reliable vacuum pump, that meets ANSI ignition proof standards.
Sparkless (Ignition Proof) Vacuum Pump Series
CPS introduces another addition to the Pro-Set vacuum pump line-up with the VPS series. An efficient, lightweight and reliable vacuum pump, that meets ANSI ignition proof standards.
VPS6DU FEATURES:
· Designed and tested to meet ANSI 12:12.01 Ignition Proof standards
· For use on refrigeration systems utilizing Class A1 (nontoxic, nonflammable), Class A2L
(non-toxic, low flammability), Class A2 (nontoxic, flammable), and Class A3 (nontoxic,
flammable) and Ammonia (NH3)
· Air-cooled, thermally protected motors encased in a durable aluminum housing
· Oil filled rotary vacuum pump cartridge construction
· Combination oil fill/exhaust port utilizes CPS exclusive oil mist free exhaust cap
· Large double-sealed oil sight glass
· Sealed start relay
· Steel inlet port with multiple intake sizes (1/4, 3/8 & 1/2 SAE), Ammonia compatible
· Ignition proof ON-OFF switch
· Rubber lined handle, skid-resistant rubber base
· Gas ballast valve for deeper vacuum
· UL listed
VPS6DU SPECIFICATIONS
Stage: 2
Ultimate Vacuum: 10 Microns
Refrigerant Class: A1, A2, A3
Dimensions: 13.1˝ x 5.5˝ x 10˝
Weight: 22.5 lb (10.2 kg)
Free Air Displacement: 6 CFM @ 60 Hz
Motor Size (HP)RPM @ 50 / 60 Hz: 1/2 HP 3440 RPM
Voltage: 115V, 60Hz
Power Connection to Pump: 10’ Hard wired
Oil Capacity: 16 oz (470 ml)
