MBH4P5EZ | BlackMax Manifold and Gauge Set
MNFLD-P-2V "H4" 80MM-C1 CHRM 5' BVE HOS

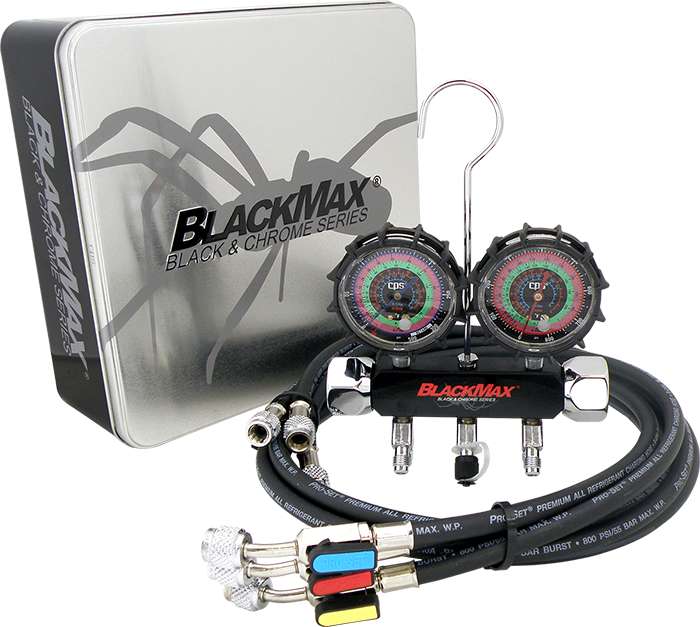

MBH4P5EZ | Manifold and Gauge Set
BlackMax® Black & Chrome series 2 valve anodized aluminum block body with ¼” SAE 45° fittings, Triple Seal™ piston valves, easy-to-read 3 ⅛” (80mm) Class 1.0 accuracy gauges, protective gauge boots, extra access port in the center with Schrader® valve, premium 5ft Pro-Set® Black & Chrome hoses with 45° anti-blowback valves on end and hanging hook. MADE IN USA
Body Type: 2 valve anodized aluminum body with ¼” SAE 45° fittings
Valve Type: Triple Seal™ piston valves
Gauge Type: 3 ⅛” (80mm), Class 1.0 with internal silicon dampening cup for Flutter-Free operation
Refrigerant Scales: R-134a, 22, 404A, 410A
Pressure Scales: PSI
Temperature Scales: °F
Hoses: 3 premium 5ft Pro-Set® Black & Chrome Pro-Set® hoses with ¼” SAE 45° ball valves on ends
Warranty: 1 year
Packaging: Custom tin box
| Service Part Number | Part Description |
| RGH4H | GAGE “H4” 80MM CL1 HI R410/22/404/134 PSI |
| RGH4L | GAGE “H4” 80MM CL1 LO R410/22/404/134 PSI |
| RGX801B | GAUGE BOOT- 80MM, CPS BLACK REV.B |
| HP5BKEZ3 | 5′ BLACK PREM CHG HOSE BV ASSY CHROME (3PK) |
| HP5BKEZ | 5′ BLACK PREM CHG HOSE BV ASSY CHROME |
| MXMH | HOOK ASSEMBLY |
| MVXKC | VALVE BLACKMAX VORTECH HANDLE CHROME (KNOB) |
| MV4XHA | 4 V VVS HOSE ANCHOR ASSEMBLY |
| HX38G | 3/8″ HOSE GASKETS (10 PACK) |
| HXG | 1/4″ HOSE GASKET (10PK) |
| HXGD | 1/4″ HOSE GASKET (6 PK) CORE DEP (6 PK) |
| MBH4Z | 2WZ VVS MNFLD, BLACK, ASSEMBLY, 1/4″ |
